Flange Spreader | Duplex Industrial Tools

Flange Spreader

1. Suitable for pipeline maintenance, repair, test &flange replacement, without damage on flange, wedge size 6mm only.
2. Maintenance is easy. The built-in cutters and wedge can be disassembled quickly.
3. Practical and lightweight. Rotating handle help it to expand horizontally & vertically.
4. Key forged parts have high strength & good reliability.

DETAILS

Related Products

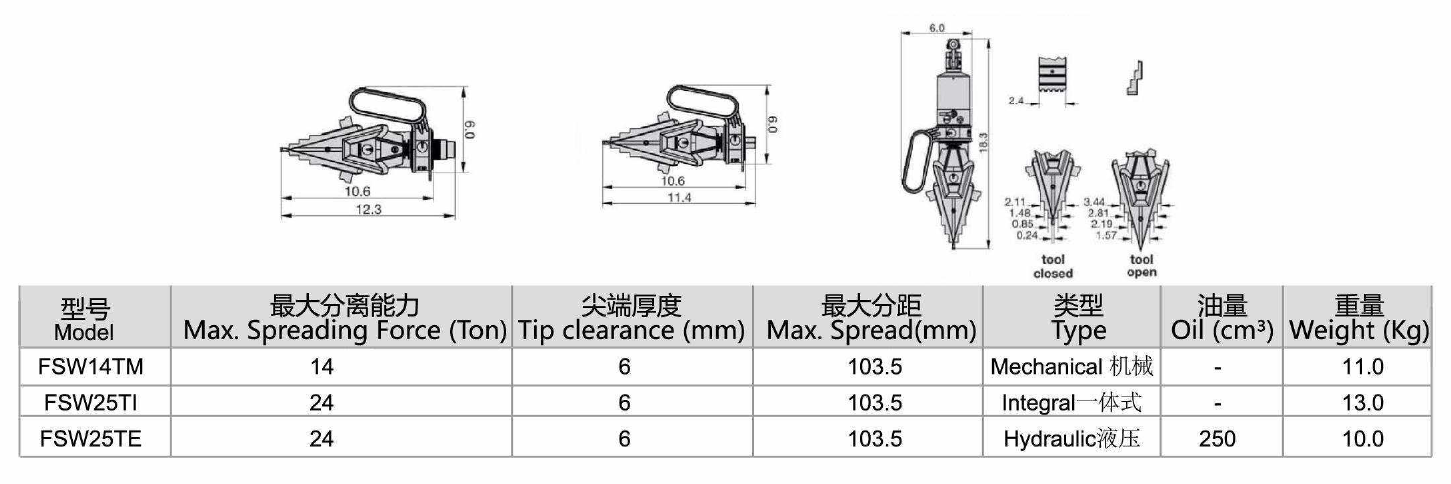

Flange Spreader

1.Max Working Pressure: 700bar;
2.For maintenance, commissioning, shutdowns,testing and valve change outs;
3.No need for hammers, chisels, slings or chain blocks;
4.Requires very small access gap of only 6 mm;
5.Both mechanical and hydraulic options available.

VIEW DETAILS

Hydraulic Flange Spreader

1.Compact and ergonomic design, easy to use;
2.Adjustable jaw widths from 70mm to 216mm for a wide range of applications;
3.Single-acting, spring return cylinders for fast, trouble-free operation.

VIEW DETAILS

Hydraulic Wedge Spreader

1.Max Working Pressure: 700bar;
2.Min installation space 10mm;
3.Capacity is 16 ton @ 700 bar;
4.Every step can bear full load;
5.Vertical lifting;
6.Unique chain lock wedge shape design;
7.Single acting, spring return;
8.Including safety block SB-2.

VIEW DETAILS

Flange Alignment Tools

1.It rectifies twist and rotational misalignment quickly, safely and without the need for an external power source
2.Appropriate for use on most ANSI, API, BS and DIN flanges
3.Reduces set-up time: no need for chains, pulleys or rigs
4.Safety strap helps provide secure operation
5.Can be installed and used in any position
6.Portable, lightweight design enables easy transport and use, even in remote locations

VIEW DETAILS
