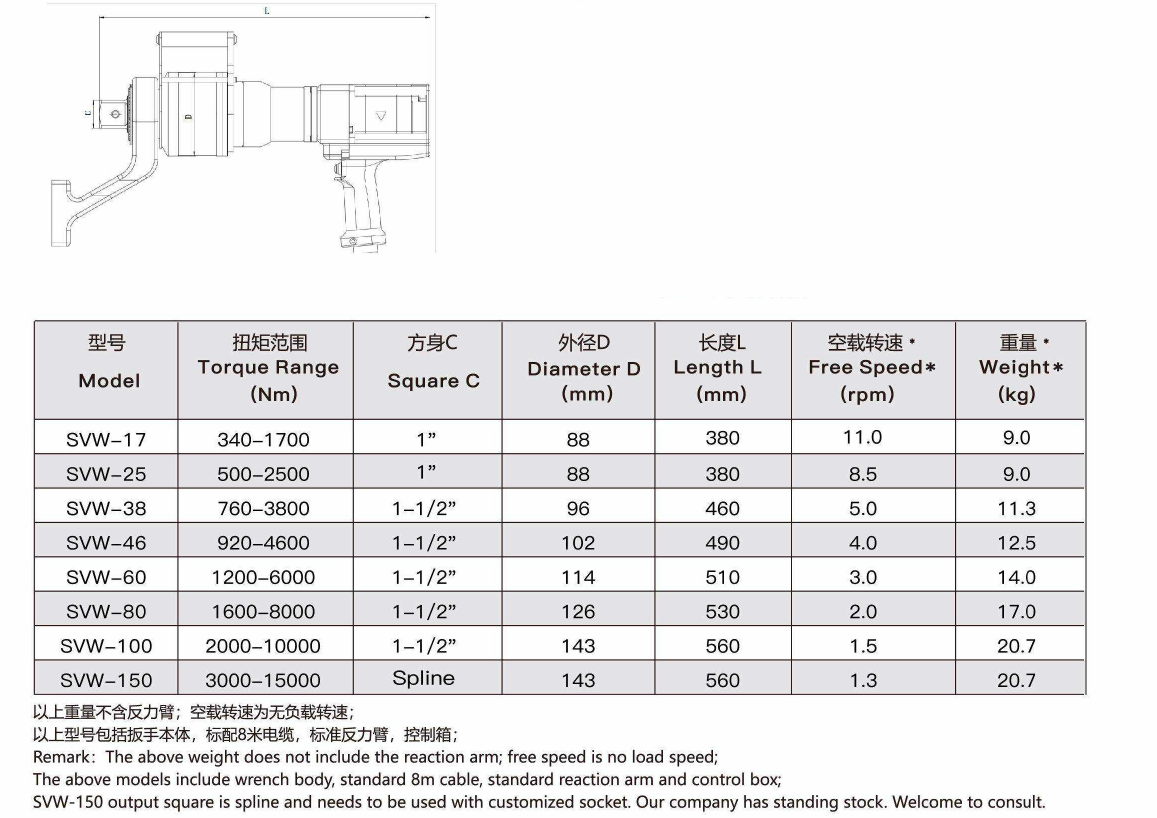

SVW Brushless Electric Torque Wrench

1. 220V / 50Hz single-phase AC, output accuracy within ± 3%
2. It can be used continuously and is suitable for high-frequency bolt assembly or disassembly
3. Maintenance free motor is adopted, and its durability is much higher than that of ordinary motor
4. It can realize torque, angle control and torque + angle control
5. The torque value is displayed in real time, and the force arm automatically retracts after tightening
6. The indicator light informs the tightening result so that the operator can see it at a glance
7. Data storage, direct generation of Excel ﬁles, traceable
8. Common torque / angle can be preset / stored to 1nm and 1 °

DETAILS
