Square Drive Hydraulic Torque Wrench | Duplex Industrial Tools

Home > Hydraulic Torque Wrench > Square Drive Hydraulic Torque Wrench

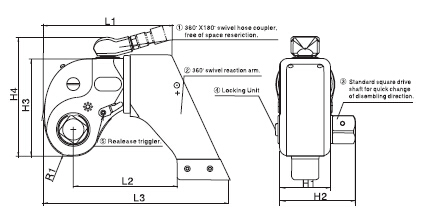

Square Drive Hydraulic Torque Wrench

1.Max Working Pressure:700bar;
2.Compact design,made of TITAL-919 alloy,a high,strength and ultra-light space material with the strength and toughness of the fuselage significantly strengthened;
3.360°swivel hose coupler. Completely free of space restriction;
4.The trigger lock needs only slight pressure to be operated, and the reaction arm of can be situated 360°on the support as required;
5.A precise ratchet is adopted with 3% accuracy.

DETAILS

Related Products

Square Drive Hydraulic Torque Wrench

1.Max Working Pressure:700bar;
2.Compact design,made of TITAL-919 alloy,a high,strength and ultra-light space material with the strength and toughness of the fuselage significantly strengthened;
3.360°swivel hose coupler. Completely free of space restriction;
4.The trigger lock needs only slight pressure to be operated, and the reaction arm of can be situated 360°on the support as required;
5.A precise ratchet is adopted with 3% accuracy.

VIEW DETAILS

Low Profile Hydraulic Torque Wrench

1.Pancake design ,made of strong and light space material TITAL-919 alloy to improve the strength and life;
2.Wide application range. One power unit head can be used with several working heads, add-on reducer inserts or inter-changeable cassettes, no need for special tools;
3.360°swivel hose coupler. Completely free of space restriction;
4.Interchangeable working head covering all sizes, more safe;
5.Ultra-light, ultra-thin and big torsion fit for various highly difficult spaces.

VIEW DETAILS

Flat Design, Low Profile Hydraulic Torque Wrench

1. Flat cylinder design, more suitable for narrow space
2. Made of strong and light space material TITAL-919 alloy to improve the strength and life; Repeatability: ±3%
3. 360°×180°swivel hose coupler. Completely free of space restriction;
4. One power unit head can be used with several working heads, covering all sizes.
5. Add-on reducer inserts or inter-changeable cassettes, no need for special tools;
6. Ultra-light, ultra-thin and big torsion fit for various difficult applications.

VIEW DETAILS

Ratchet Cassette Hydraulic Torque Wrench

1. Integral machining ,made of strong and light space material TITAL-919 alloy to improve the strength and life; Repeatability: ±3%
2. 360°×180°swivel hose coupler. Completely free of space restriction;
3. Suitable for narrow space where square drive wrench doesn’t fit.
4. One power unit head can be used with several working heads, covering all sizes.
5. Add-on reducer inserts or inter-changeable cassettes, no need for special tools;
6. Light, thin and big torsion fit for various difficult applications.
